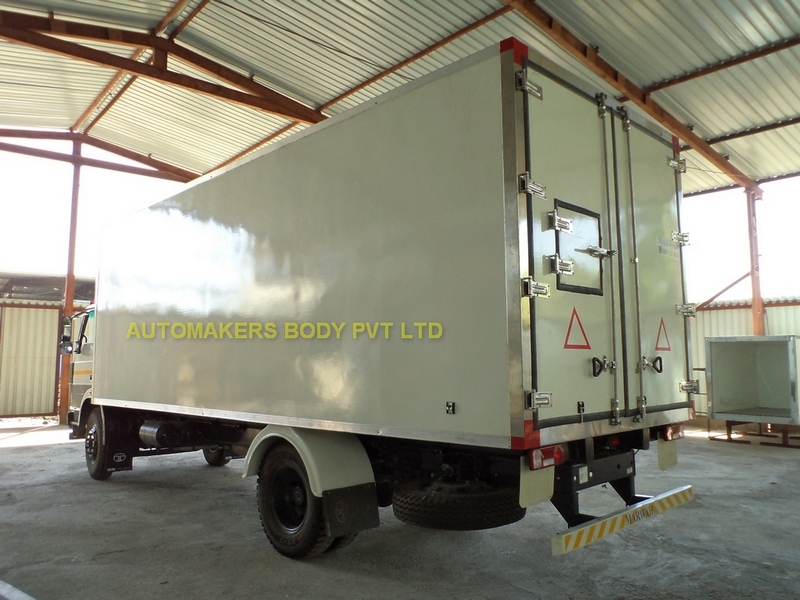

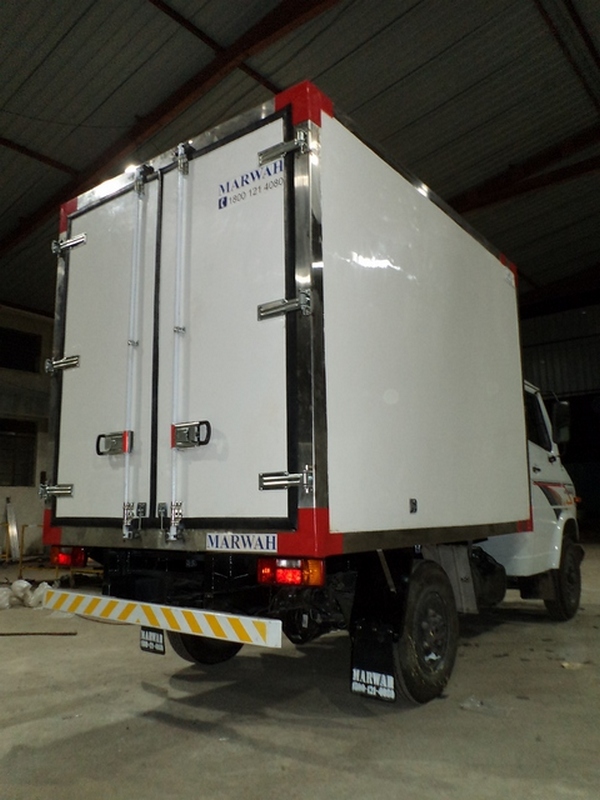

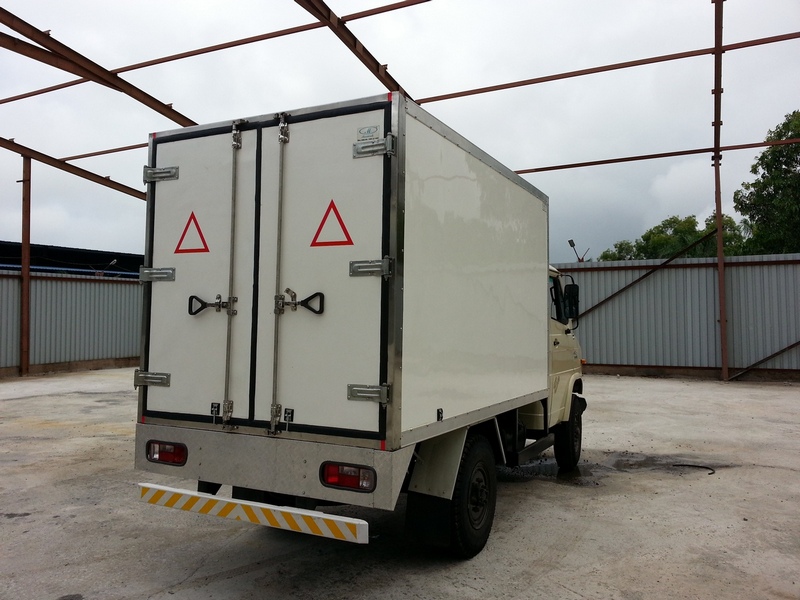

Refrigerated Van on Tata 407 / 909
- MARWAH
- India
- 20 days
- 100 unit/month
1. Chassis Brand : TATA
2. GRP PUF GRP Sandwiched panels;
3. Upto 24 feet body.
Seamless Food grade GRP Panel;
Stainless Steel & Aluminum Hardware , hence no Rusting;
4. High K Value in the market. Ideal for Temperatures ranging to +30 to -18 deg C
5. Side Doors
6. Provision for Bulk Heads ( Fixed / Floating)
7. Plant-on OR Recessed lashing rails.
8. Steps for all doors.
9. Ice Cream Doors.
10. EPDM Seals and Gaskets.
11. FRP Moulded Mudguards.
12. Equip with the MARS brand Refrigeration System,
Product Introduction
MARWAH refrigerated is a van designed to carry perishable freight at specific temperatures,such as fruit,vegetable,milk,medicine,meat and so on.The material used is polyurethane and fiber glass for the van.
Product Parameters
Tata 407 / 709 / 909 / 1109 | ||
General | Body Brand | MARWAH |
Chassis Brand | Tata | |
Overall Dimension |
8feet to 24 feet | |
GVW/Curb Weight | 4495(Kg) | |
Cab | Cab Seat | 3 |
Air Conditioner | No | |
Engine | Fuel Type | Diesel |
Engie Model | TATA | |
Engine Brand | TATA | |
Power | 85kw | |
Displacement | 2771ml | |
Emmission Standard | BS-VI | |
Chassis | Cabin Chassis (CBC) | 4*2 |
Transmission | Manual | |
Wheelbase | 2800,3400 4800 (mm) | |
Tyre Specification | 7.00R16LT 8PR | |
Tyre No. | 4-6 | |
Max Speed | 100(km/h) | |
Paint | Optional | |

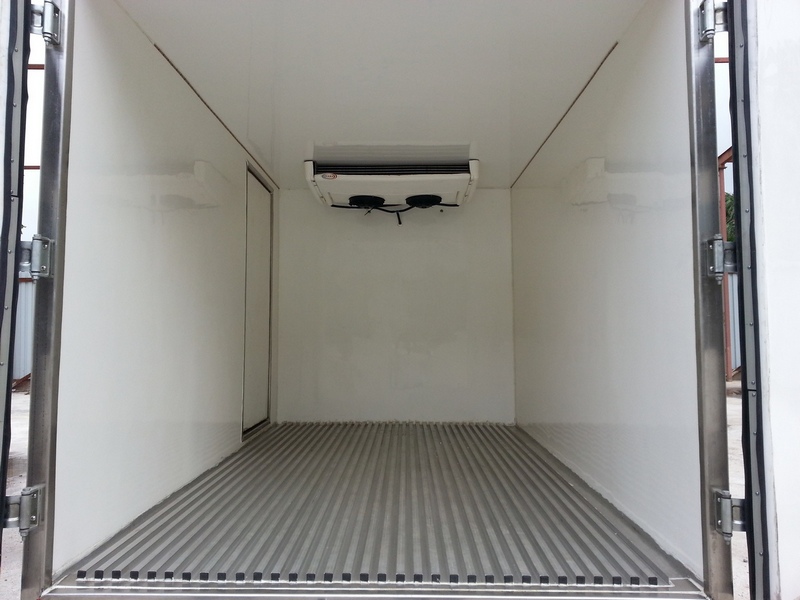

Superstructure | 1. Volume:8 - 36m³,ISO Thermal container made by 100 mm GRP PUF GRP Sandwiched Panel | |
Optional | The truck is normally used to tranport fozen foods (ice truck), dairy (milk truck), fruits and vegetables (fresh carrier), vaccine and drug transporters (vaccine), etc. | |
Refrigeration units
Details Display
Delivery: PDI;
1.The vehicles are totally checked Bumper to Bumper.
2.Water Spray Testing is done .
3.Fitted with all traficators .
4.All documents in place with a pvc folder before delivery.
Payment terms
T/T
L/C
Delivery time: Generally 25days
