Description

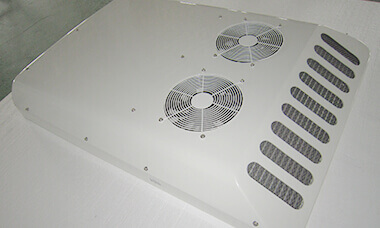

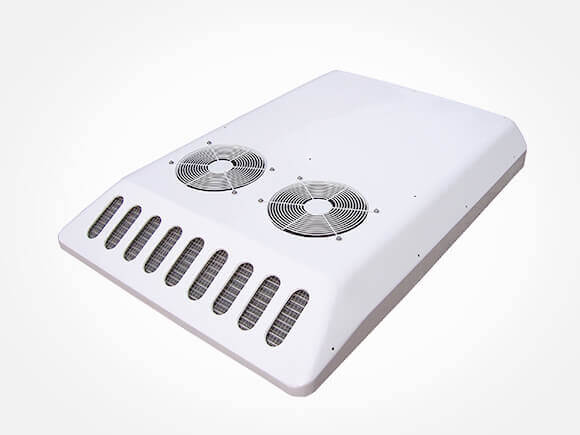

VC-12 Van Air Conditioner is exclusively designed for6～7.2m long Vans with seats up to 16 seaters The same design comes in VC-15, which is used for longer Force Motors Vans. Easy to Install and has a sleek look
High cooling capacity
High Cooling Capacity & Reliable Performance Suitable for Most Places in the World
Apply all kinds of minibus
Stream Line Design to Apply All Kinds of minibus
High quality
Cheap Price with High Quality
Certification
ISO 9001, CE & TS16949 Certification
Parameter
Model | VC-12 | |
Cooling capacity | 12KW | |
Voltage | DC12V/24V | |
Condenser | Type | Copper pipe & Aluminum Foil fin |
Fan Qty | 2 | |
Air flow Volume | 3800m³/h | |

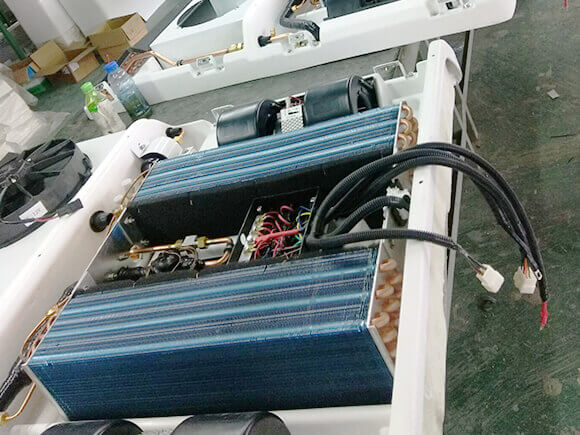

Evaporator | Type | Copper pipe & Aluminum Foil fin |
Blower Qty | 2 | |
Air flow Volume | 2000m³/h | |
Evaporator blower | Double axle and centrifugal flow | |
Condenser fan | Axial flow | |
Compressor | 212cc/r or 313cc/r | |
Refrigerant | R134a | |
Mounting position & driven mode | Rooftop mounted & mono-block, vehicle engine driven | |
Dimensions (mm) | Evaporator | 1520×1100×175mm |
Condenser | ||
Applicable vehicle type | 6~7.2m Bus/Caravan | |
Purchase Guide
Model: VC-12 Van Air Conditioner , is mainly design for less wide Vans Comes with OR without Ducts for single seat or double seat row. Microprocessor controller gives precise temperature and Passenger comfort
