Description

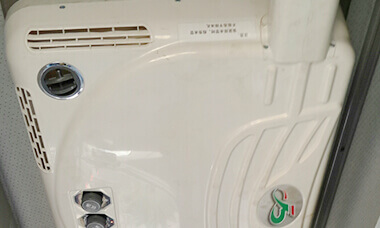

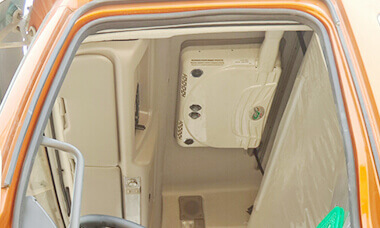

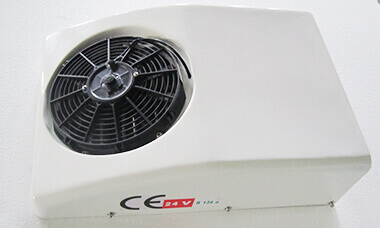

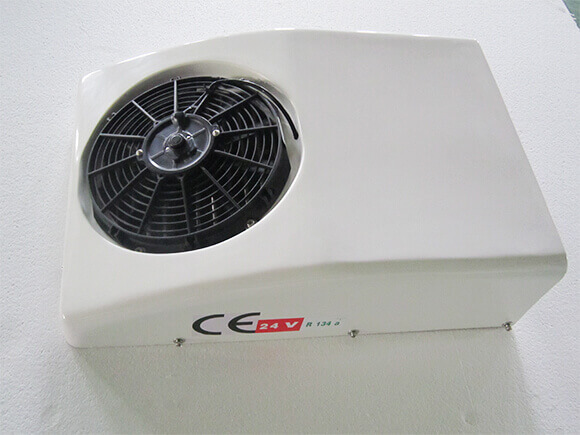

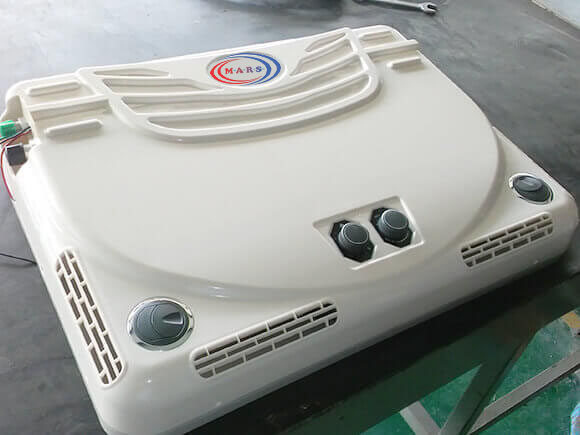

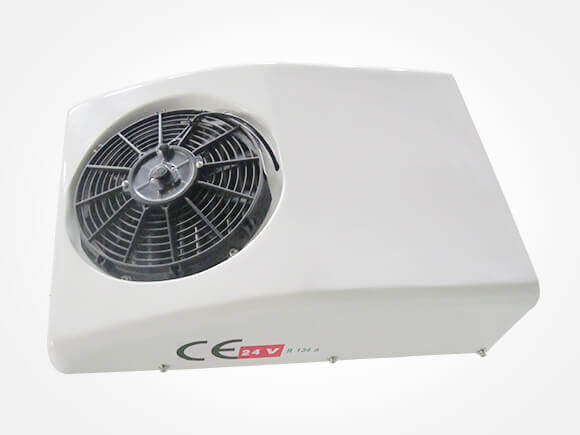

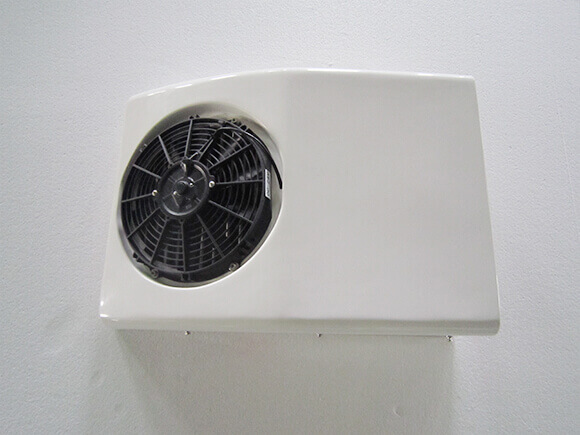

Split Design, back mounted condenser, and ceiling mounted evaporator
Special for heavy truck
It is designed according to the heavy truck applied characteristics and working condition
No exhaust gas and efficient
DT30F is different from traditional construction machinery& truck air conditioner, it is driven by vehicle battery driven, so it is fuel saving, low power, low noisy
Light weight
The air conditioner system is with fashion design, small volume
Battery DC12V/24V
The system is driven by vehicle battery DC12V/24V, when it works, it is not necessary to start the engine
With various advantages
The system is with various advantages such as no fuel consumption, environmental protection refrigerant R134a
Parameter
Model | VC-30BS | |
Cooling capacity | 3000W | |
Installing type | Split & ceiling mounted condenser | |
Driven mode | Battery driven unit | |
Compressor Voltage | DC12V/24V/48V/60V/72V etc. | |
Total current rating | ≤80A (DC12V) ≤40A (DC24V) | |
Evaporator blower air volume | 650m3/h | |
Condenser fan air volume | 1700m3/h | |
Compressor | 15cc/r or 18cc/r | |
Dimensions (mm) | Evaporator | 686×497×143 |
Condenser | 693×488×187 | |
Refrigerant | R134a, 0.8kg | |
Suitable vehicles | All truck cabins, construction machineries and electric vehicles | |
Purchase Guide
Suggestion for use and maintains
The VC-30BSair conditioner operates with engine switched off and is extremely quiet.
It’s efficient and safe and its power consumption is low and it doesn’t compromise the integrity of the vehicle’s battery, always guaranteeing its setting in motion. It has a save-battery device.
Always switch off the air conditioner before tipping the vehicle cab, even if the system has a protective device which switches off the system in the event of tipping.
Pay close attention when washing the cab using a jet cleaner and avoid aiming the jet at the condenser as it could break or bend the flaps of the heat exchanger.
The replacement, filling refrigerant and other work should be professionals to operate.
