Description
Compressor: 15cc/r, or 18cc/r

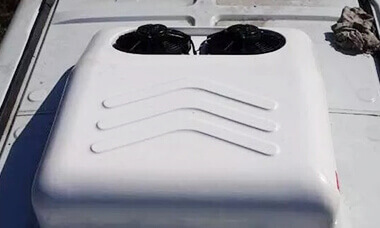

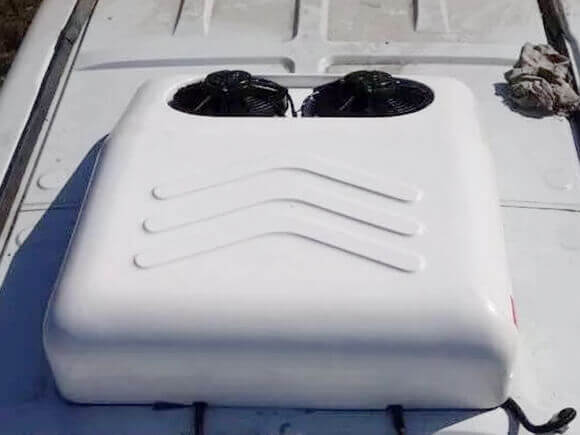

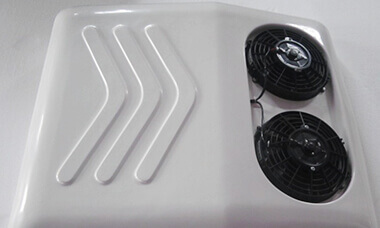

Rooftop mounted condenser
Rooftop mounted condenser and slim evaporator design
Special for heavy truck driving
Special for heavy truck driving & sleeping cabins and & electric vehicles
Strong cooling capacity
Strong cooling capacity, large cooling air volume
DC powered driven
DC powered driven (12V/24V/48V/72V/96V etc.)
Elegant appearance
High-strength fiberglass enclosure, elegant appearance
Protection
Green and Environmental Protection
Full digital control
Full digital control, easy to operate
Parameter
Model | VC-30BM | |
Cooling capacity | 3000W | |
Installing type | Mono-block & rooftop mounted | |
Driven mode | Battery driven unit | |
Compressor Voltage | DC12V/24V/48V/60V/72V etc. | |
Total current rating | ≤85A (DC12V) ≤45A (DC24V) | |
Evaporator blower air volume | 580m3/h | |
Condenser fan air volume | 1500m3/h | |
Compressor | 15cc/r or 18cc/r | |
Dimensions (mm) | Evaporator | 900×795×203 |
Condenser | ||
Refrigerant | R134a, 0.9kg | |
Suitable vehicles | All truck cabins, construction machineries and electric vehicles | |
Optional parts & function | Wireless controller | |
Purchase Guide
Suggestion for use and maintains
The VC-30BM Air conditioner operates with engine switched off and is extremely quiet.
It’s efficient and safe and its power consumption is low and it doesn’t compromise the integrity of the vehicle’s battery, always guaranteeing its setting in motion. It has a save-battery device.
Always switch off the air conditioner before tipping the vehicle cab, even if the system has a protective device which switches off the system in the event of tipping.
Pay close attention when washing the cab using a jet cleaner and avoid aiming the jet at the condenser as it could break or bend the flaps of the heat exchanger.
The replacement, filling refrigerant and other work should be professionals to operate.
