Description
Trucks, commercial vehicles, and electric vehicles.
Special for heavy truck
It is designed according to the heavy truck applied characteristics and working condition
Driven by DC battery
Fuel saving, low power, low noisy, no exhaust gas and efficient
System is with fashion design
Small volume, light weight and so on
Vehicle battery DC12V/24V
When it works, it is not necessary to start the engine
System is with various advantages
Such as no fuel consumption, environmental protection refrigerant R134a
Vehicles
Various construction machinery, heavy truck, truck and so on. We also can design and develop products according to different vehicles
Parameter
Model | VC-20BS | |
Cooling capacity | 1600W ~ 1800W | |

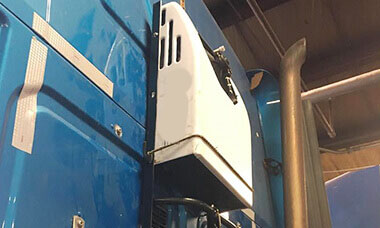

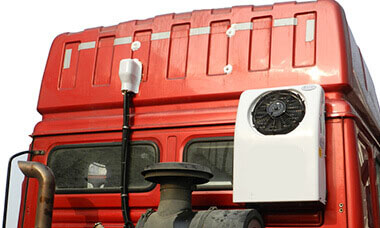

Installing type | Split & Back mounted condenser | |
Driven mode | Battery driven unit | |
Compressor Voltage | DC12V/24V/48V/60V/72V etc. | |
Total current rating | ≤80A (DC12V) ≤40A (DC24V) | |
Evaporator blower air volume | 450m3/h | |
Condenser fan air volume | 1700m3/h | |
Compressor | 15cc/r or 18cc/r | |
Dimensions (mm) | Evaporator | 720×310×143 |

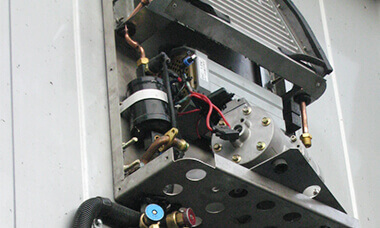

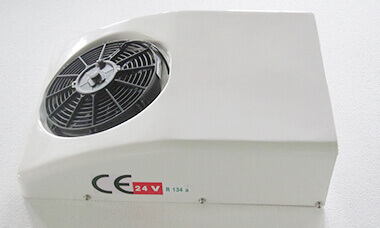

Condenser | 693×488×187 | |
Refrigerant | R134a, 0.8kg | |

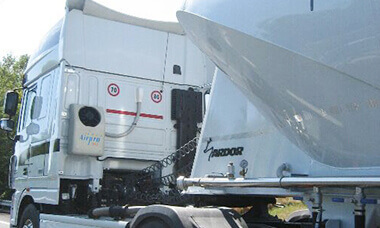

Suitable vehicles | All truck cabins, construction machineries and electric vehicles | |
Optional parts & function | Wireless controller | |
Purchase Guide
Suggestion for use and maintains
The DT20F/DT20A/DT30A air conditioner operates with engine switched off and is extremely quiet.
It’s efficient and safe and its power consumption is low and it doesn’t compromise the integrity of the vehicle’s battery, always guaranteeing its setting in motion. It has a save-battery device.
Always switch off the air conditioner before tipping the vehicle cab, even if the system has a protective device which switches off the system in the event of tipping.
Pay close attention when washing the cab using a jet cleaner and avoid aiming the jet at the condenser as it could break or bend the flaps of the heat exchanger.
The replacement, filling refrigerant and other work should be professionals to operate.
